Product Overview

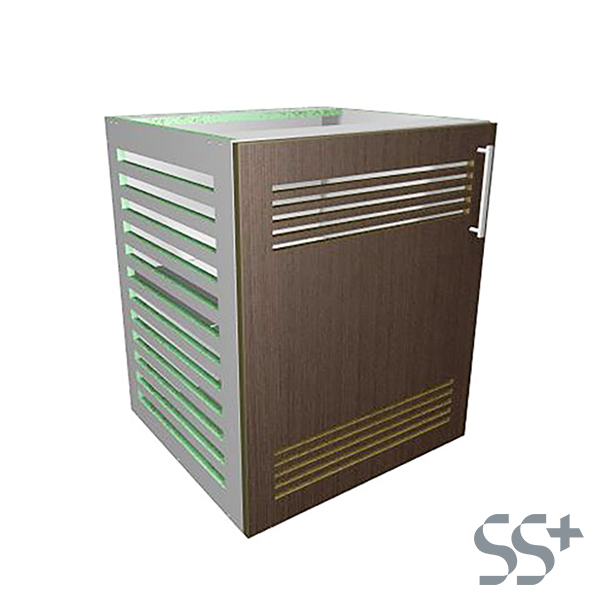

The Vent Slots Package from Solid Setup Plus allows you to add a series of vent routes to parts and slab type doors via attribute, quickly and easily.

  • Two sets of slots can be added to each part.
  • The following settings can be used to control the Vent slots:
  • Length
  • Width
  • Spacing
  • Quantity
  • Rotation – Horizontal or Vertical
  • X and Y starting position
  • Depth of slots
  • Front or Back Face of part (for non-thru slots)

Product is available for these Cabinet Vision Versions:
The Packages provided are for CV2021 - CV2022 - CV2023 - CV2024
For older versions please contact us.
