Product Overview
This Package adds back joining holes to your cabinets in Cabinet Vision.
Add the cabinet attribute "Join Back ?" to base cabinets.
Select from the following options:
Back = Through holes in the cabinet back for fixing through into object behind.
Back + Pilot = Through holes in the cabinet back for fixing through into object behind, and also pilot holes into face of object behind.

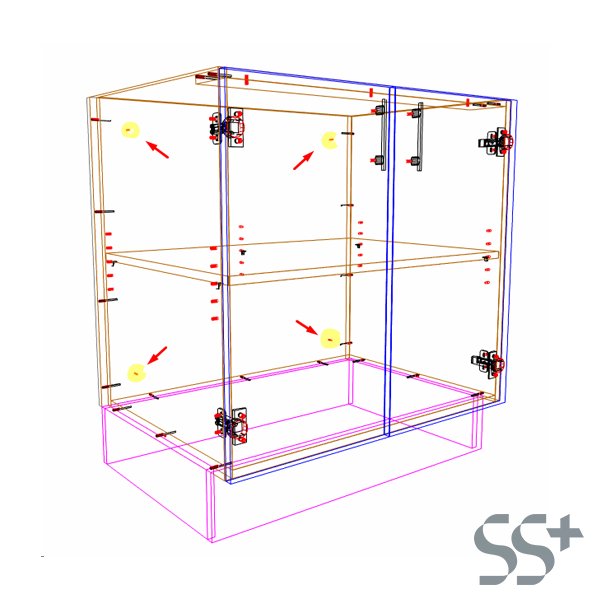

Add 4 holes in corners of back or extra columns of holes if cabinet is wider
positions and quantity of holes can be edited using "Join Holes Edit?" attribute on the back part.
UCS public variables set the default hole positions and sizes
Product is available for these Cabinet Vision Versions:
The Packages provided are for CV2021 - CV2022 - CV2023 - CV2024
For older versions please contact us.
